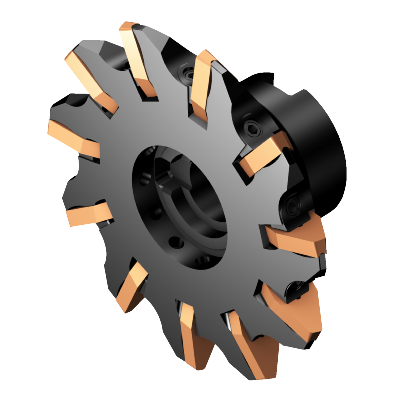

162-140Q32-60 CoroMill® 162 gear milling cutter
hinta
€4.501,20
-
hinta
€4.501,20
hinta
€4.501,20
€4.501,20
-
€4.501,20
hinta
€4.501,20
Product data
Profile specification(PRSPC)
DIN3272-II /6
Tool cutting edge angle (KAPR)
70 deg

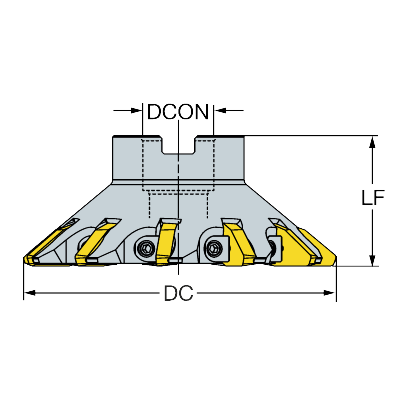

Cutting diameter (DC)
140 mm
Cutting item count(CICT)
13
Clamping type code(MTP)
W
Insert type(CUTINT_MASTER)
CoroMill 176 (176M60-N150612E-PM)
Depth of cut maximum (APMX)
14.7 mm
Peripheral effective cutting edge count(ZEFP)
13
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -metric: 32
Hand (HAND)
R
Coolant entry style code (CNSC)
0: without coolant
Connection diameter(DCONMS)
32 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
55 mm
Body diameter(BD)
113 mm
Body length(LB)
55 mm
Torque(TQ)
5 Nm
Body material(BMC)
Steel
Rotational speed maximum(RPMX)
2,000 1/min
Weight of item(WT)
2.212 kg
Release date(ValFrom20)
6/27/14
Release pack id(RELEASEPACK)
14.2
