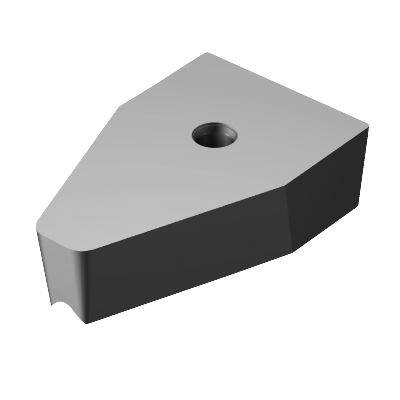

176M80-N210616E-PM 1130 CoroMill® 176 insert for gear milling
hinta
€68,57
-
hinta
€68,57
hinta
€68,57
€68,57
-
€68,57
hinta
€68,57
Product data
Workpiece material(s)(TMC1ISO)
Profile specification(PRSPC)
mn8
Insert mounting style code(IFS)
1
Fixing hole diameter(D1)
2.5 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 176 -M80 (21)
Cutting edge count(CEDC)
1
Insert rake angle(GAN)
0 deg
Grade (GRADE)
1130
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiCrN
Insert width(W1)
19.55 mm
Insert thickness(S)
5.5 mm
Weight of item(WT)
0.0194 kg
Release date(ValFrom20)
9/22/16
Release pack id(RELEASEPACK)
16.2
