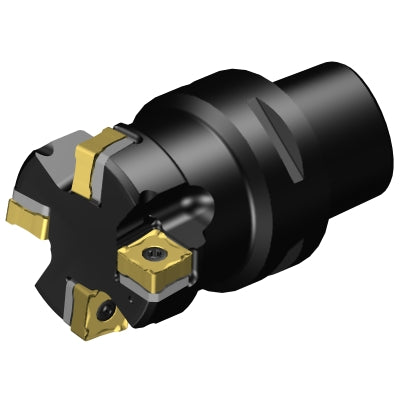

MF80-AR051C5-13M CoroMill® MF80 face milling cutter
hinta
€775,00
-
hinta
€775,00
hinta
€775,00
€775,00
-
€775,00
hinta
€775,00
Product data
Tool cutting edge angle (KAPR)
89.5 deg
Cutting diameter (DC)
50.8 mm
Cutting item count(CICTEND)
4
Cutting item count(CICTTOT)
4
Clamping type code(MTP)
S: clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill MF80 -1305
Depth of cut maximum (APMX)
9 mm
Working engagement ratio maximum(AERMX)
1
Maximum plunge depth(AZ)
0 mm
Cutting pitch differential(CPDF)
Yes
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Coromant Capto (bolt clamping) -size C5
Hand (HAND)
R
Coolant entry style code (CNSC)
3: axial concentric and radial entry
Functional diameter(DFC)
35 mm
Connection diameter(DCONMS)
50 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
60 mm
Torque(TQ)
3 Nm
Body material (BMC)
Steel
Rotational speed maximum(RPMX)
13,100 1/min
Weight of item(WT)
0.839 kg
Release date(ValFrom20)
26/03/2023
Release pack id(RELEASEPACK)
23.2
