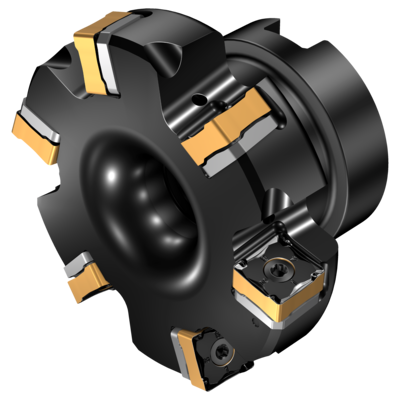

MF80-R100Q32-13H CoroMill® MF80 face milling cutter
hinta
€1.227,60
-
hinta
€1.227,60
hinta
€1.227,60
€1.227,60
-
€1.227,60
hinta
€1.227,60
Product data
Tool cutting edge angle (KAPR)
89.5 deg
Cutting diameter (DC)
100 mm
Cutting item count(CICTEND)
10
Cutting item count(CICTTOT)
10
Clamping type code(MTP)
S: clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill MF80 -1305
Depth of cut maximum (APMX)
9 mm
Working engagement ratio maximum(AERMX)
1
Maximum plunge depth(AZ)
0 mm
Peripheral effective cutting edge count(ZEFP)
10
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -metric: 32
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Connection diameter(DCONMS)
32 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
50 mm
Torque(TQ)
3 Nm
Body material (BMC)
Steel
Rotational speed maximum(RPMX)
9,300 1/min
Weight of item(WT)
0.965 kg
Release date(ValFrom20)
26/09/2022
Release pack id(RELEASEPACK)
22.2
