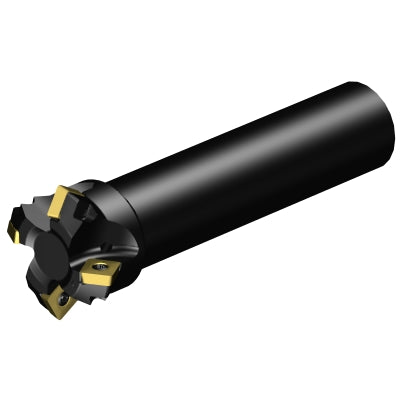

495-025A25-3009H CoroMill® 495 chamfer milling cutter
hinta
€453,84
-
hinta
€453,84
hinta
€453,84
€453,84
-
€453,84
hinta
€453,84
Product data
Tool cutting edge angle(KAPR1)
30 deg
Tool cutting edge angle(KAPR2)
60 deg
Cutting diameter(DC1)
25.5 mm
Cutting diameter(DC2)
31.874 mm
Maximum cutting diameter(DCX)
39.488 mm
Cutting item count(CICT)
4
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
3.807 mm
Depth of cut maximum(APMX2)
6.594 mm
Usable length (LU)
59 mm
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features -metric: 25.0
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
25 mm
Functional length(LF1)
120 mm
Functional length(LF2)
108.72 mm
Body diameter(BD)
30.6655 mm
Body length(LB)
59.9569 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
8,100 1/min
Weight of item(WT)
0.49 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
