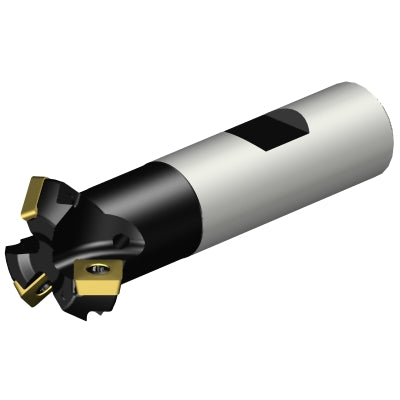

A495-020M19-4509M CoroMill® 495 chamfer milling cutter
hinta
€411,68
-
hinta
€411,68
hinta
€411,68
€411,68
-
€411,68
hinta
€411,68
Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
19.558 mm
Cutting diameter(DC2)
20.027 mm
Maximum cutting diameter(DCX)
30.96 mm
Cutting item count(CICT)
3
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
5.467 mm
Peripheral effective cutting edge count(ZEFP)
3
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 3/4
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
19.05 mm
Functional length(LF1)
85.0888 mm
Functional length(LF2)
73.13 mm
Body diameter(BD)
18.7692 mm
Body length(LB)
33.1448 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
9,500 1/min
Weight of item(WT)
0.1908 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
