161-080Q27-3 CoroMill® 161 gear milling cutter
hinta
€2.600,28
-
hinta
€2.600,28
hinta
€2.600,28
€2.600,28
-
€2.600,28
hinta
€2.600,28

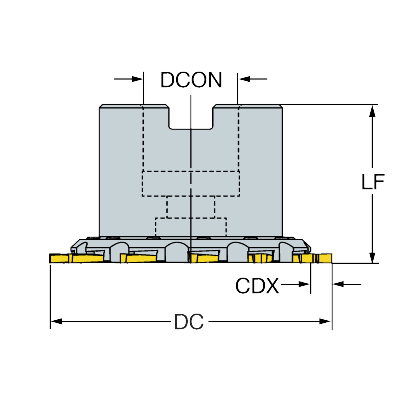

Product data
Cutting width (CW)
2.5 mm
Cutting diameter (DC)
80 mm
Cutting depth maximum (CDX)
6 mm
Cutting item count(CICT)
12
Clamping type code(MTP)
S: clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroCut XS -size 3L (MACL 3 250-T) CW=2.5
Peripheral effective cutting edge count(ZEFP)
12
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric: 27
Hand (HAND)
R
Coolant entry style code (CNSC)
0: without coolant
Connection diameter(DCONMS)
27 mm
Hub diameter(DHUB)
52 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
A
Functional length(LF)
45 mm
Body diameter(BD)
52 mm
Body length(LB)
45 mm
Rotational speed maximum(RPMX)
10,000 1/min
Weight of item(WT)
0.825 kg
Release date(ValFrom20)
6/27/14
Release pack id(RELEASEPACK)
14.2
