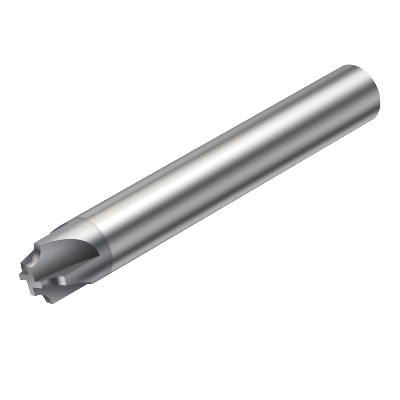

1U000-0119-079-XA 1620 CoroMill® Dura solid carbide end mill for chamfer milling
hinta
€105,03
-
hinta
€105,03
hinta
€105,03
€105,03
-
€105,03
hinta
€105,03

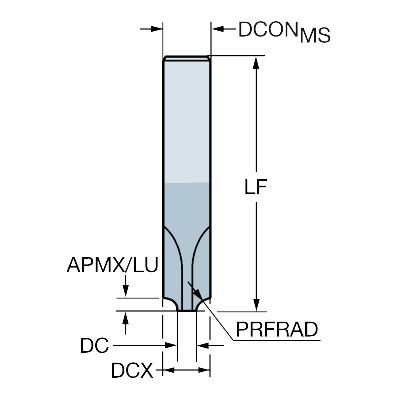

Product data
Workpiece material(s)(TMC1ISO)
Profile radius(PRFRAD)
0.794 mm
Cutting diameter (DC)
1.19 mm
Maximum cutting diameter(DCX)
3.175 mm
Peripheral effective cutting edge count(ZEFP)
2
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features -inch: 1/8
Connection diameter tolerance(TCDCON)
h6
Grade (GRADE)
1620
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Shank standard group(BSG)
INTERNAL
Coolant entry style code (CNSC)
0: without coolant
Connection diameter(DCONMS)
3.175 mm
Functional length(LF)
38.1 mm
Rotational speed maximum(RPMX)
80,000 1/min
Weight of item(WT)
0.014 kg
Release date(ValFrom20)
12/3/21
Release pack id(RELEASEPACK)
16.2
