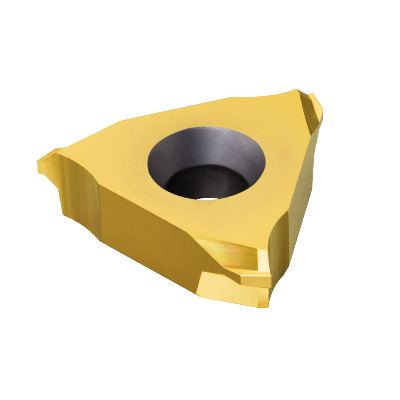

328R13-215 45-GC 1025 CoroMill® 328 insert for groove milling
hinta
€65,60
-
hinta
€65,60
hinta
€65,60
€65,60
-
€65,60
hinta
€65,60
Start values (Hex/Fz conv. factor 1.2 )
P
fz0.11 mm (0.05 - 0.14)
hex0.09 mm (0.04 - 0.12)
vc250 m/min (260 - 245)
M
fz0.11 mm (0.05 - 0.14)
hex0.09 mm (0.04 - 0.12)
vc260 m/min (270 - 255)
K
fz0.11 mm (0.05 - 0.14)
hex0.09 mm (0.04 - 0.12)
vc265 m/min (275 - 260)
PMKNSH
Product data
Workpiece material(s)(TMC1ISO)
Chip breaker(CBMD)
GC
Operation type (CTPT)
5
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 328 -13
Cutting edge count(CEDC)
3
Insert seat(SSC)
13

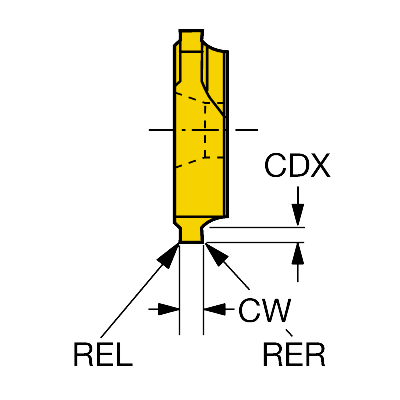

Cutting width (CW)
2.15 mm
Cutting width lower tolerance(CWTOLL)
0.09 mm
Cutting width upper tolerance(CWTOLU)
0.11 mm
Corner radius left(REL)
0.15 mm
Corner radius right(RER)
0.15 mm
Corner radius lower tolerance(RETOLL)
-0.05 mm
Corner radius upper tolerance(RETOLU)
0.05 mm
Cutting depth maximum (CDX)
1.5 mm
Machine side body angle(BAMS)
0 deg
Hand (HAND)
R
Grade (GRADE)
1025
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
5.15 mm
Clearance angle major(AN)
6 deg
Weight of item(WT)
0.0166 kg
Release date(ValFrom20)
8/22/08
Release pack id(RELEASEPACK)
08.2
