328R13-400 MM-TH 1025 CoroMill® 328 insert for thread milling
hinta
€90,40
-
hinta
€90,40
hinta
€90,40
€90,40
-
€90,40
hinta
€90,40
Start values (Hex/Fz conv. factor 1.2 )
P
fz0.11 mm (0.05 - 0.14)
hex0.09 mm (0.04 - 0.12)
vc250 m/min (260 - 245)
M
fz0.11 mm (0.05 - 0.14)
hex0.09 mm (0.04 - 0.12)
vc260 m/min (270 - 255)
K
fz0.11 mm (0.05 - 0.14)
hex0.09 mm (0.04 - 0.12)
vc265 m/min (275 - 260)
PMKNSH
Product data
Workpiece material(s)(TMC1ISO)
Thread form(THFT)
M60
Standard number(STDNO)
ISO 965-1998
Thread type(TTP)
INT
Thread pitch(TP)
4 mm
Thread profile type(TPT)
F: full profile
Tooth count(NT)
1
Thread tolerance class(TCTR)
IT 6

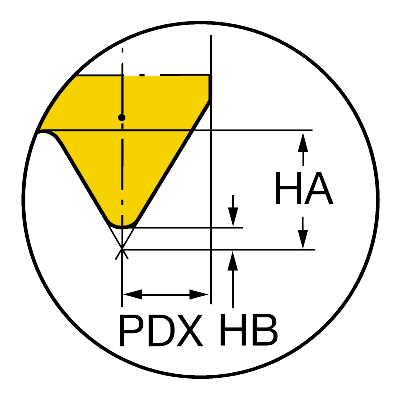

Theoretical thread height(HA)
2.6 mm
Thread height difference(HB)
0.43 mm
Profile distance ex(PDX)
1.75 mm
Profile distance ey(PDY)
0 mm
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
5.6 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 328 -13
Cutting edge count(CEDC)
3

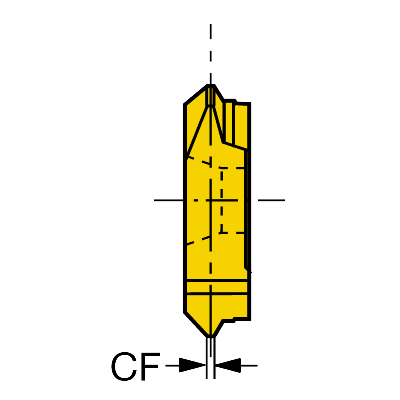

Spot chamfer(CF)
0.5 mm
Hand (HAND)
R
Grade (GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
5.25 mm
Weight of item(WT)
0.0115 kg
Release date(ValFrom20)
2/22/11
Release pack id(RELEASEPACK)
11.1
