400.4-0500-031A1-NM N1BU CoroDrill® 400 solid carbide drill
hinta
€218,24
-
hinta
€218,24
hinta
€218,24
€218,24
-
€218,24
hinta
€218,24

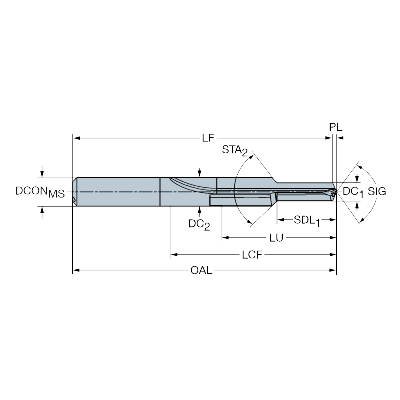

Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter(DC1)
5 mm
Cutting diameter(DC2)
8 mm
Achievable hole tolerance(TCHA)
H9
Achievable hole tolerance lower(TCHAL)
5 mm
Achievable hole tolerance upper(TCHAU)
5.03 mm
Step diameter length(SDL)
15 mm
Usable length (LU)
31 mm
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 8
Orthogonal rake angle(GAMO)
0 deg
Connection diameter tolerance(TCDCON)
h6
Grade (GRADE)
N1BU
Substrate(SUBSTRATE)
HC
Coolant entry style code (CNSC)
4: axial concentric entry on circle
Shank standard group(BSG)
COROMANT
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
8 mm
Point angle(SIG)
135 deg
Point length(PL)
0.97 mm
Overall length(OAL)
90 mm
Step included angle(STA)
90 deg
Functional length(LF)
89.03 mm
Maximum regrinds(NORGMX)
4
Rotational speed maximum(RPMX)
50,000 1/min
Weight of item(WT)
0.031 kg
Chip flute length(LCF)
50.85 mm
Release date(ValFrom20)
9/26/18
Release pack id(RELEASEPACK)
18.2
