430.1-1020-070A1-NM N1BU CoroDrill® 430 solid carbide drill
hinta
€354,64
-
hinta
€354,64
hinta
€354,64
€354,64
-
€354,64
hinta
€354,64

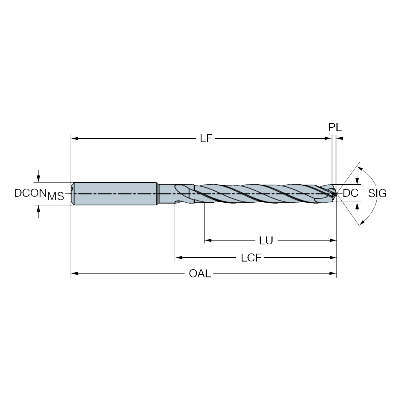

Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter (DC)
10.2 mm
Achievable hole tolerance(TCHA)
H9
Connection diameter(DCONMS)
12 mm
Achievable hole tolerance lower(TCHAL)
10.2 mm
Usable length (LU)
70 mm
Achievable hole tolerance upper(TCHAU)
10.243 mm
Usable length diameter ratio (ULDR)
6.8627
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 12
Orthogonal rake angle(GAMO)
20.45 deg
Connection diameter tolerance(TCDCON)
h6
Grade (GRADE)
N1BU
Substrate(SUBSTRATE)
HC
Shank standard group(BSG)
COROMANT
Coolant entry style code (CNSC)
4: axial concentric entry on circle
Coolant pressure(CP)
20 bar
Point angle(SIG)
135 deg
Point length(PL)
2.11 mm
Overall length(OAL)
140 mm
Functional length(LF)
137.89 mm
Chip flute length(LCF)
85.3 mm
Maximum regrinds(NORGMX)
4
Rotational speed maximum(RPMX)
50,000 1/min
Weight of item(WT)
0.096 kg
Release date(ValFrom20)
9/26/18
Release pack id(RELEASEPACK)
18.2
