495-012A16-4509L CoroMill® 495 chamfer milling cutter
hinta
€323,64
-
hinta
€323,64
hinta
€323,64
€323,64
-
€323,64
hinta
€323,64

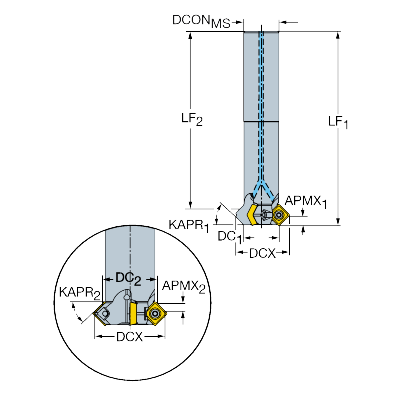

Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
12 mm
Cutting diameter(DC2)
18.8 mm
Maximum cutting diameter(DCX)
23.405 mm
Cutting item count(CICT)
1
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
2.3 mm
Usable length (LU)
51 mm
Peripheral effective cutting edge count(ZEFP)
1
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features -metric: 16.00
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
16 mm
Functional length(LF1)
100 mm
Functional length(LF2)
90.8 mm
Body diameter(BD)
11.216 mm
Body length(LB)
23.4037 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
14,400 1/min
Weight of item(WT)
0.155 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
