495-012A16-7509L CoroMill® 495 chamfer milling cutter
hinta
€323,64
-
hinta
€323,64
hinta
€323,64
€323,64
-
€323,64
hinta
€323,64

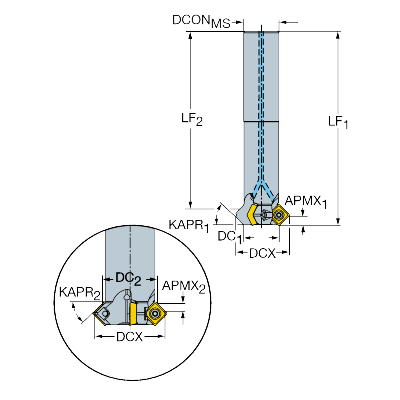

Product data
Tool cutting edge angle (KAPR)
75 deg
Cutting diameter (DC)
12 mm
Maximum cutting diameter(DCX)
16.149 mm
Cutting item count(CICT)
1
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum (APMX)
7.723 mm
Peripheral effective cutting edge count(ZEFP)
1
Connection - machine side(ADINTMS)
Cylindrical shank without clamping features -metric: 16.00
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
16 mm
Functional length(LF)
100 mm
Body diameter(BD)
12.9787 mm
Body length(LB)
49.285 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
14,400 1/min
Weight of item(WT)
0.1333 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
