495-012EH16-4509L CoroMill® 495 chamfer milling cutter
hinta
€339,76
-
hinta
€339,76
hinta
€339,76
€339,76
-
€339,76
hinta
€339,76

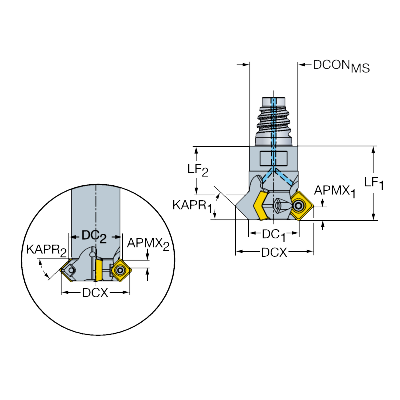

Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
12 mm
Cutting diameter(DC2)
18.757 mm
Maximum cutting diameter(DCX)
23.405 mm
Cutting item count(CICT)
1
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
2.323 mm
Peripheral effective cutting edge count(ZEFP)
1
Connection - machine side(ADINTMS)
Coromant EH -metric - E16
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
15.5 mm
Functional length(LF1)
30 mm
Functional length(LF2)
20.8 mm
Body diameter(BD)
11.216 mm
Body length(LB)
18.9509 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
14,400 1/min
Weight of item(WT)
0.063 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
