495-025EH25-4509H CoroMill® 495 chamfer milling cutter
hinta
€474,92
-
hinta
€474,92
hinta
€474,92
€474,92
-
€474,92
hinta
€474,92

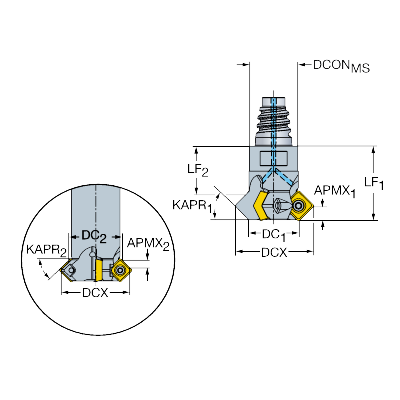

Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
25.5 mm
Cutting diameter(DC2)
25.968 mm
Maximum cutting diameter(DCX)
36.902 mm
Cutting item count(CICT)
4
Clamping type code(MTP)
S: clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
5.467 mm
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Coromant EH -metric - E25
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
24.2 mm
Functional length(LF1)
35 mm
Functional length(LF2)
23.17 mm
Body diameter(BD)
24.711 mm
Body length(LB)
24.0373 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
8,100 1/min
Weight of item(WT)
0.1705 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
