495-040C4-4509H CoroMill® 495 chamfer milling cutter
hinta
€648,52
-
hinta
€648,52
hinta
€648,52
€648,52
-
€648,52
hinta
€648,52

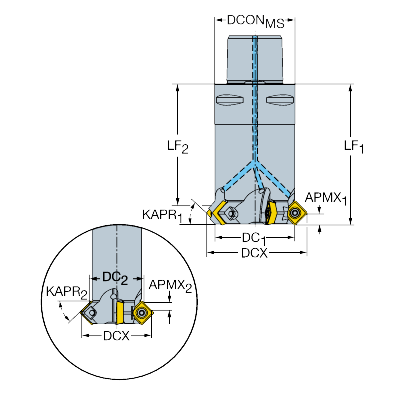

Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
40.5 mm
Cutting diameter(DC2)
41.014 mm
Maximum cutting diameter(DCX)
51.905 mm
Cutting item count(CICT)
5
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
5.445 mm
Peripheral effective cutting edge count(ZEFP)
5
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C4
Hand (HAND)
R
Coolant entry style code (CNSC)
3: axial concentric and radial entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
40 mm
Functional length(LF1)
70 mm
Functional length(LF2)
58.36 mm
Body diameter(BD)
39.716 mm
Body length(LB)
49.651 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
6,100 1/min
Weight of item(WT)
0.685 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
