690-100510M-P-SL 1030 CoroMill® 690 insert for milling
hinta
€30,01
-
hinta
€30,01
hinta
€30,01
€30,01
-
€30,01
hinta
€30,01
Start values (KAPR 90 deg)
S
fz0.1 mm (0.05 - 0.2)
hex0.1 mm (0.05 - 0.2)
vc40 m/min (45 - 40)
S
Product data
Workpiece material(s)(TMC1ISO)
Operation type (CTPT)
10
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.5 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 690 -1005 P
Cutting edge count(CEDC)
4

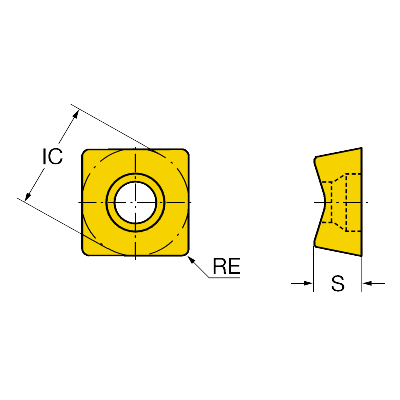

Inscribed circle diameter(IC)
10 mm
Insert shape code(SC)
S: square
Cutting edge effective length(LE)
9 mm
Corner radius (RE)
1 mm
Major cutting edge angle(KRINS)
90 deg
Hand (HAND)
N
Grade (GRADE)
1030
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
5.2 mm
Weight of item(WT)
0.0033 kg
Release date(ValFrom20)
9/8/08
Release pack id(RELEASEPACK)
08.2
