690-100531M-E-SL S40T CoroMill® 690 insert for milling
hinta
€28,77
-
hinta
€28,77
hinta
€28,77
€28,77
-
€28,77
hinta
€28,77
Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.5 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 690 -1005 E
Cutting edge count(CEDC)
2

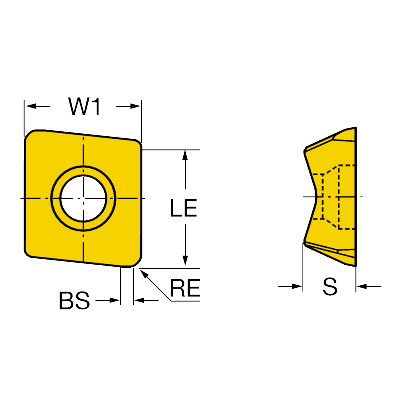

Insert width(W1)
10 mm
Cutting edge effective length(LE)
10 mm
Wiper edge length(BS)
1 mm
Corner radius (RE)
3.1 mm
Major cutting edge angle(KRINS)
90 deg
Hand (HAND)
R
Grade (GRADE)
S40T
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
5.2 mm
Weight of item(WT)
0.0037 kg
Release date(ValFrom20)
2/19/10
Release pack id(RELEASEPACK)
10.1
