690-140610M-P-SL S30T CoroMill® 690 insert for milling
hinta
€31,99
-
hinta
€31,99
hinta
€31,99
€31,99
-
€31,99
hinta
€31,99
Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
5.5 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 690 -1406 P
Cutting edge count(CEDC)
4

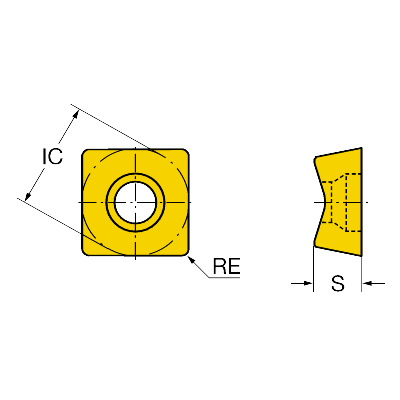

Inscribed circle diameter(IC)
14.5 mm
Insert shape code(SC)
S: square
Cutting edge effective length(LE)
13.5 mm
Corner radius (RE)
1 mm
Major cutting edge angle(KRINS)
90 deg
Hand (HAND)
N
Grade (GRADE)
S30T
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
6.35 mm
Weight of item(WT)
0.0094 kg
Release date(ValFrom20)
2/19/10
Release pack id(RELEASEPACK)
10.1
