745R-2109E-M30 1130 CoroMill® 745 insert for milling - Primica Tools

745R-2109E-M30 1130 CoroMill® 745 insert for milling

sandvik coromant
€0
€42,59 - €42,59
€42,59
€42,59 - €42,59
€42,59
Start values  (KAPR 42 deg)
P
fz0.21  mm  (0.15 - 0.25)
hex0.14  mm  (0.1 - 0.17)
vc220  m/min  (240 - 210)
Start values  (KAPR 25 deg)
P
fz0.33  mm  (0.24 - 0.4)
hex0.14  mm  (0.1 - 0.17)
vc220  m/min  (240 - 210)

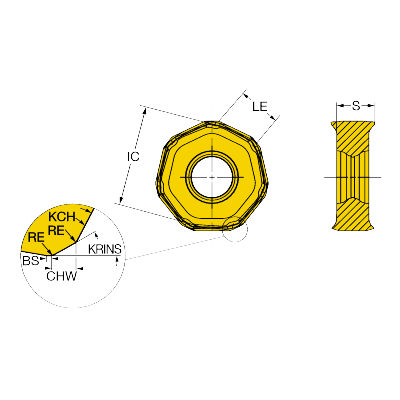

Product data
Workpiece material(s)(TMC1ISO)
P
Operation type (CTPT)
Medium
Insert mounting style code(IFS)
3
Fixing hole diameter(D1)
8.3 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 745/725 -size 2109
Cutting edge count(CEDC)
14
Inscribed circle diameter(IC)
21 mm
Cutting edge effective length(LE)
8.9 mm
Depth of cut maximum (APMX)
5.2 mm
Corner chamfer(KCH)
17 deg
Corner chamfer width(CHW)
1.3 mm
Wiper edge length(BS)
0.3 mm
Wiper edge radius(BSR)
25 mm
Corner radius (RE)
1 mm
Major cutting edge angle(KRINS)
42 deg
Face land width(BN)
0.2 mm
Face land angle(GB)
-31 deg
Insert rake angle(GAN)
44 deg
Hand (HAND)
R
Grade (GRADE)
1130
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
9 mm
Weight of item(WT)
0.0306 kg
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
