745R-2109E-M31 K20W CoroMill® 745 insert for milling
hinta
€38,56
-
hinta
€38,56
hinta
€38,56
€38,56
-
€38,56
hinta
€38,56
Start values (KAPR 42 deg)
K
fz0.21 mm (0.15 - 0.3)
hex0.14 mm (0.1 - 0.2)
vc180 m/min (195 - 160)
K

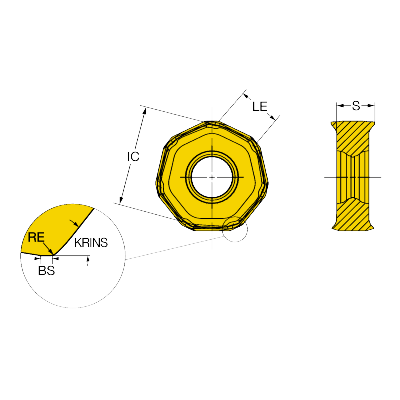

Product data
Workpiece material(s)(TMC1ISO)
Operation type (CTPT)
5
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
8.3 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 745 -size 2109
Cutting edge count(CEDC)
14
Inscribed circle diameter(IC)
21 mm
Cutting edge effective length(LE)
7.1 mm
Depth of cut maximum (APMX)
4.5 mm
Wiper edge length(BS)
1.9 mm
Wiper edge radius(BSR)
150 mm
Corner radius (RE)
1 mm
Major cutting edge angle(KRINS)
42 deg
Face land width(BN)
0.2 mm
Face land angle(GB)
-30 deg
Insert rake angle(GAN)
44 deg
Hand (HAND)
R
Grade (GRADE)
K20W
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
9 mm
Weight of item(WT)
0.0316 kg
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
