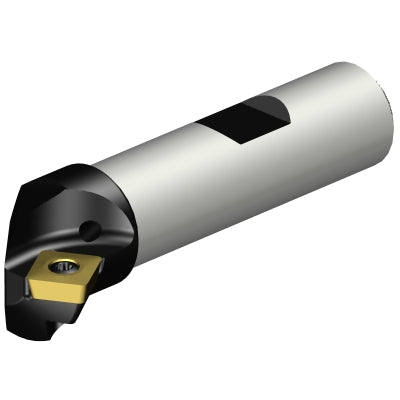

A495-013M16-3009L CoroMill® 495 chamfer milling cutter
hinta
€323,64
-
hinta
€323,64
hinta
€323,64
€323,64
-
€323,64
hinta
€323,64

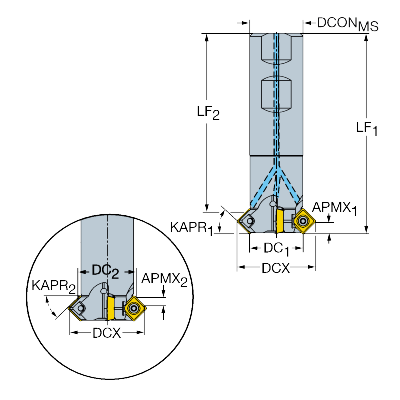

Product data
Tool cutting edge angle(KAPR1)
30 deg
Tool cutting edge angle(KAPR2)
60 deg
Cutting diameter(DC1)
13.208 mm
Cutting diameter(DC2)
19.594 mm
Maximum cutting diameter(DCX)
27.197 mm
Cutting item count(CICT)
1
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
3.807 mm
Depth of cut maximum(APMX2)
6.585 mm
Peripheral effective cutting edge count(ZEFP)
1
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 5/8
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
15.875 mm
Functional length(LF1)
73.2015 mm
Functional length(LF2)
61.9025 mm
Body diameter(BD)
18.375 mm
Body length(LB)
19.0417 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
13,600 1/min
Weight of item(WT)
0.096 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
