A495-013M16-4509L CoroMill® 495 chamfer milling cutter
hinta
€323,64
-
hinta
€323,64
hinta
€323,64
€323,64
-
€323,64
hinta
€323,64

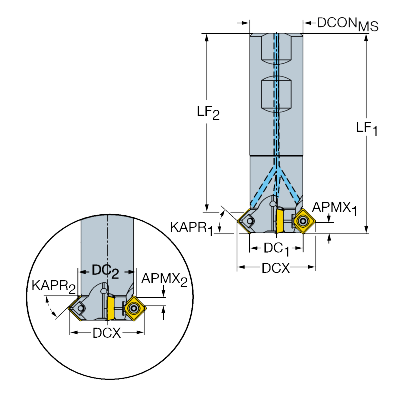

Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
13.208 mm
Cutting diameter(DC2)
19.926 mm
Maximum cutting diameter(DCX)
24.613 mm
Cutting item count(CICT)
1
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
2.343 mm
Peripheral effective cutting edge count(ZEFP)
1
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 5/8
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
15.875 mm
Functional length(LF1)
73.2015 mm
Functional length(LF2)
64 mm
Body diameter(BD)
12.424 mm
Body length(LB)
18.5717 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
13,600 1/min
Weight of item(WT)
0.088 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
