A495-026M25-4509H CoroMill® 495 chamfer milling cutter
hinta
€453,84
-
hinta
€453,84
hinta
€453,84
€453,84
-
€453,84
hinta
€453,84

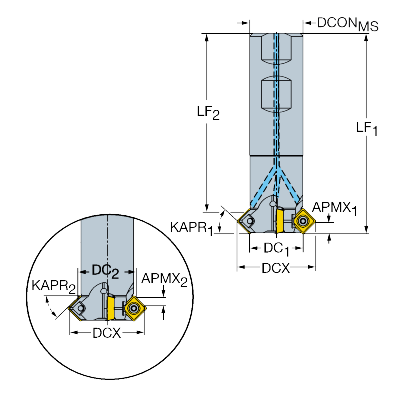

Product data
Tool cutting edge angle(KAPR1)
45 deg
Tool cutting edge angle(KAPR2)
45 deg
Cutting diameter(DC1)
25.908 mm
Cutting diameter(DC2)
26.377 mm
Maximum cutting diameter(DCX)
37.31 mm
Cutting item count(CICT)
4
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum(APMX1)
5.467 mm
Depth of cut maximum(APMX2)
5.467 mm
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 1
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
25.4 mm
Functional length(LF1)
95.2487 mm
Functional length(LF2)
83.44 mm
Body diameter(BD)
25.1192 mm
Body length(LB)
36.9647 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
8,000 1/min
Weight of item(WT)
0.328 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
