A495-026M25-7509H CoroMill® 495 chamfer milling cutter
hinta
€453,84
-
hinta
€453,84
hinta
€453,84
€453,84
-
€453,84
hinta
€453,84

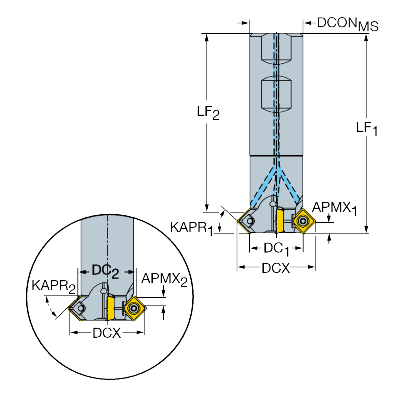

Product data
Tool cutting edge angle (KAPR)
75 deg
Cutting diameter (DC)
25.908 mm
Maximum cutting diameter(DCX)
30.056 mm
Cutting item count(CICT)
3
Clamping type code(MTP)
S
Insert type(CUTINT_MASTER)
CoroMill 495 -size 09 (495-09T3M-XL)
Depth of cut maximum (APMX)
7.74 mm
Peripheral effective cutting edge count(ZEFP)
3
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 1
Hand (HAND)
R
Coolant entry style code (CNSC)
1: axial concentric entry
Coolant pressure(CP)
20 bar
Connection diameter(DCONMS)
25.4 mm
Functional length(LF)
95.2487 mm
Body diameter(BD)
25.619 mm
Body length(LB)
36.9925 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
8,000 1/min
Weight of item(WT)
0.325 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
