R790-160440PH-NL H13A CoroMill® 790 insert for milling
hinta
€43,09
-
hinta
€43,09
hinta
€43,09
€43,09
-
€43,09
hinta
€43,09
Start values (KAPR 90 deg)
N
fz0.2 mm (0.1 - 0.3)
hex0.2 mm (0.1 - 0.3)
vc970 m/min (1000 - 940)
N
Product data
Workpiece material(s)(TMC1ISO)
Operation type (CTPT)
10
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.1 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 790 -1604
Cutting edge count(CEDC)
2

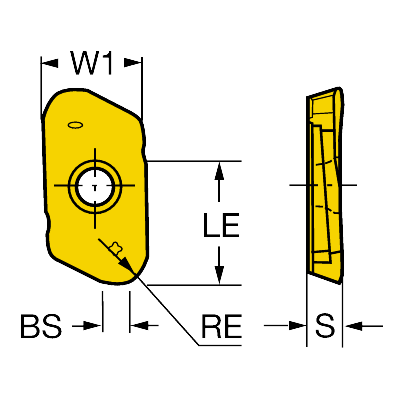

Insert width(W1)
11 mm
Cutting edge effective length(LE)
16 mm
Depth of cut maximum (APMX)
15 mm
Wiper edge length(BS)
1 mm
Corner radius (RE)
4 mm
Major cutting edge angle(KRINS)
90 deg
Hand (HAND)
R
Grade (GRADE)
H13A
Substrate(SUBSTRATE)
HW
Insert thickness(S)
4 mm
Weight of item(WT)
0.0054 kg
Release date(ValFrom20)
9/17/10
Release pack id(RELEASEPACK)
10.2
