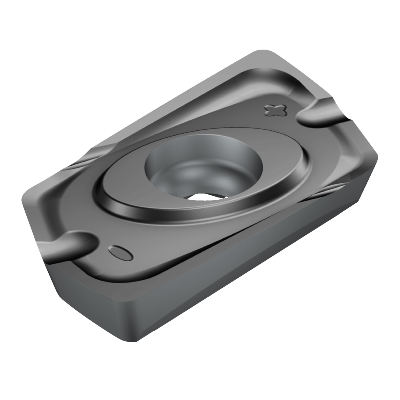

R790-220508PH-PL 1010 CoroMill® 790 insert for milling
hinta
€79,36
-
hinta
€79,36
hinta
€79,36
€79,36
-
€79,36
hinta
€79,36

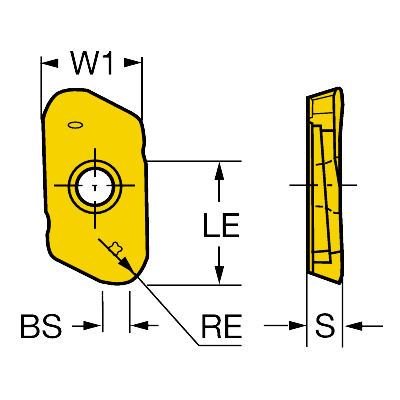

Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code(IFS)
3: partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
5.7 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 790 -2205
Cutting edge count(CEDC)
2
Insert width(W1)
16 mm
Cutting edge effective length(LE)
18 mm
Depth of cut maximum (APMX)
18 mm
Wiper edge length(BS)
1 mm
Corner radius (RE)
0.8 mm
Major cutting edge angle(KRINS)
90 deg
Insert rake angle(GAN)
9 deg
Hand (HAND)
R
Grade (GRADE)
1010
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
5 mm
Weight of item(WT)
0.0153 kg
Release date(ValFrom20)
9/22/09
Release pack id(RELEASEPACK)
09.2
