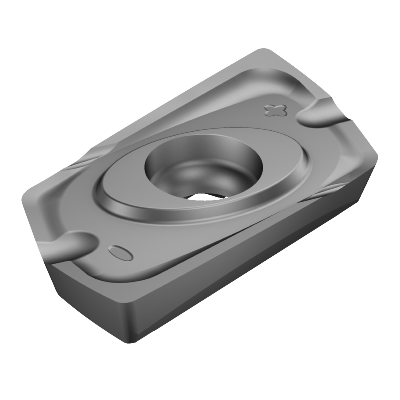

R790-220564PH-NM H13A CoroMill® 790 insert for milling
hinta
€57,41
-
hinta
€57,41
hinta
€57,41
€57,41
-
€57,41
hinta
€57,41
Start values (KAPR 90 deg)
N
fz0.3 mm (0.2 - 0.6)
hex0.3 mm (0.2 - 0.6)
vc940 m/min (970 - 850)
N
Product data
Workpiece material(s)(TMC1ISO)
Operation type (CTPT)
Medium
Insert mounting style code(IFS)
3
Fixing hole diameter(D1)
5.7 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 790 -2205
Cutting edge count(CEDC)
2

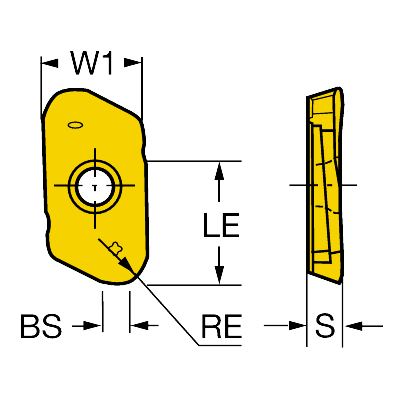

Insert width(W1)
16 mm
Cutting edge effective length(LE)
18 mm
Depth of cut maximum (APMX)
18 mm
Corner radius (RE)
6.4 mm
Major cutting edge angle(KRINS)
90 deg
Insert rake angle(GAN)
9 deg
Hand (HAND)
R
Grade (GRADE)
H13A
Substrate(SUBSTRATE)
HW
Insert thickness(S)
5 mm
Weight of item(WT)
0.0153 kg
Release date(ValFrom20)
8/15/05
Release pack id(RELEASEPACK)
05.2
