745R-2109E-M31 S30T CoroMill® 745 insert for milling
hinta
€42,59
-
hinta
€42,59
hinta
€42,59
€42,59
-
€42,59
hinta
€42,59

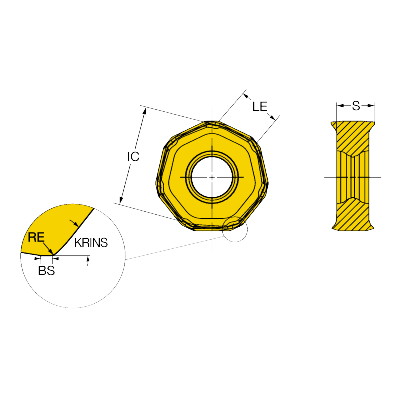

Product data
Workpiece material(s)(TMC1ISO)
Insert mounting style code(IFS)
3
Fixing hole diameter(D1)
8.3 mm
Insert size and shape (CUTINT_SIZESHAPE)
CoroMill 745 -size 2109
Cutting edge count(CEDC)
14
Inscribed circle diameter(IC)
21 mm
Cutting edge effective length(LE)
7.1 mm
Depth of cut maximum (APMX)
4.5 mm
Wiper edge length(BS)
1.9 mm
Wiper edge radius(BSR)
150 mm
Corner radius (RE)
1 mm
Major cutting edge angle(KRINS)
42 deg
Face land width(BN)
0.2 mm
Face land angle(GB)
-30 deg
Insert rake angle(GAN)
44 deg
Hand (HAND)
R
Grade (GRADE)
S30T
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
9 mm
Weight of item(WT)
0.0299 kg
Release date(ValFrom20)
2/19/17
Release pack id(RELEASEPACK)
17.1
